Compatible with Laerdal LINK Technology
Correct pad placement and inactivity (hands off) time is indicated by Laerdal LINK Technology to train more effectively in defibrillation.
What is Laerdal LINK Technology?
Laerdal LINK Technology will provide feedback for assessment of:
- Correct pad placement
- Time spent from administering Quality CRP, to placing the pads, to delivering a shock.
These are some of the most important actions, during sudden cardiac arrest, where an AED is needed.
Practicing with feedback will improve patient outcomes.
Laerdal LINK Technology is the only solution that detects correct pad placement and sends an event to the session timeline in SimPad SkillReporter.
Specifications

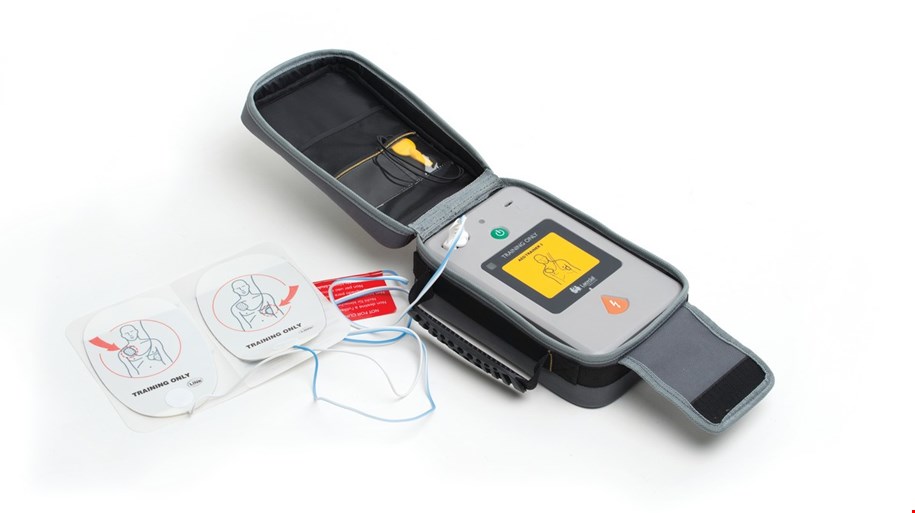

Below you will find the most important Technical Specifications for the AED Trainer 3. Most of the specifications you will also find in the Directions for Use (DfU).
Physical
- Weight: 600g (1.3lbs)
- Size (HxWxD): 218 mm x 133 mm x 57 mm (8.6” x 5.2” x 2.2” )
- Ruggedness:
- 10cm drop without operation interruption
- 1 meter drop test retaining full functionality
- No IP classification
Operation
Operating System:
- OnData Card - 1 GB SD.
- Data card also contains configuration software (multi language) required to change device parameters.
- Localisation and software updates available from Laerdal download site.
Battery
- Type: 4 x AA Alkaline (any brand)
- Capacity: >10 hours
Materials
- Materials Prop 65 compliant
- Housing: Acrylonitrile butadiene styrene (ABS)
- Control buttons: Silicone
- Foot: Polyurethane (PU)
- Infant/Child key: Polycarbonate and polybutylene terephthalate (PC + PBT)
- Tether: Silicone
EMC Classification
The product is in compliance with the essential requirements of Directive 2004/108/EC on electromagnetic compatibility through compliance with:
- IEC 61000-6-3 Electromagnetic Compatibility (EMC) - Part 6-3:
- IEC 61000-6-1 Electromagnetic Compatibility (EMC) - Part 6-1:
(See DFU for additional electromagnetic conformity information)
Regulatory Approvals
CE mark, FCC Statement (US), CSA Certification (Canada), C Tick (N25270) (Australia)
Environmental Controls
- Storage temperature: 0º - 40º C (32º - 104º F)
- Operating temperature: 10º - 35º C (50º - 95º F)
- Relative humidity: 0 - 90% non-condensing
Remote Control
- Size: 96 mm x 54 mm x 6 mm (3.8” x 2.1” x 0.2”)
- Battery Type: Lithium CR2025 3V
Disposal
AED Trainer 3 contains electronic components which should be disposed of in accordance with local regulations.
Warranty
One Year limited. Please see Laerdal Global Warranty for terms and conditions.
Service
Out of warranty repair carried out by Laerdal Tech Centres
