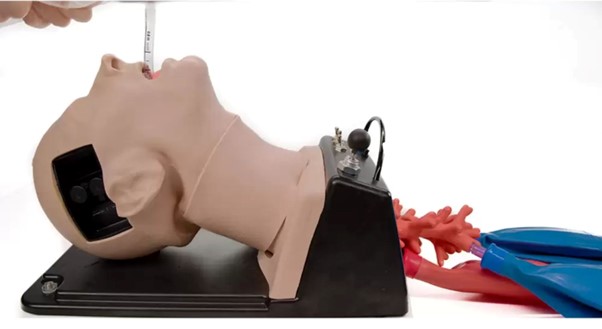

AirSim Difficult Airway with Bronchi

Adult intubation head trainer provides a solution for varying degrees of difficulty when practicing airway management.

This versatile model ranges from challenging to very difficult to intubate, facilitating a variety of training scenarios from beginner to advanced users.

The AirSim Difficult Airway with Bronchi has been designed to improve management of the unanticipated difficult intubation in accordance with the Difficult Airway Society guidelines.

Model Features

Difficult Airway

• The internal airway has an enlarged tongue, swollen posterior cartilages and an elongated epiglottis to provide a challenging airway management user experience.

Laryngospasm

• Adjustable from normal to complete airway obstruction.
• Sudden closure of the vocal cords can be simulated.
• Upon successful user action, laryngospasm can be mechanically reversed to provide positive feedback

Displaced larynx

• Ability to displace the larynx into a more anterior position to make visualisation of the vocal cords more challenging.
• Adjustable to provide various levels of difficulty.

Tongue Edema

•  The tongue can be swollen to simulate various degrees of tongue angioedema.

Receding / protruding Mandible

• Various degrees of malocclusion, one mandibular variant and two maxillary variants.
• Overbite and underbite features simulated

Trismus

• Ability to grossly restrict mouth opening to make insertion of airway devices more challenging

Neck lock / Head rotation restriction

• Ability to simulate cervical arthropathy through restricting the range of motion of cervical spine
• Neck lock / Head rotation restriction

Simulate needle and surgical cricothyroidotomy and percutaneous tracheostomy.

• Easy identification of sternal notch, tracheal rings & cricoid and laryngeal cartilages
• Interchangeable larynx allows quick and easy repeated use
• Wraparound replaceable neck skin rotates for 10-15 incisions

Bronchoscopy Techniques

• Diagnostic bronchoscopy
• Lung suctioning techniques
• Lung isolation techniques using left & right endobronchial tubes & bronchial blockers

All features can be activated quickly and effortlessly by the instructor to create a more challenging or easier experience. The features can be used in isolation or combined to deliver a scenario with numerous variations of difficulty.

Advanced Difficult Airway Management Training Manikin for Intubation, Tracheostomy, Cricothyroidotomy & Bronchoscopy Techniques

The AirSim Difficult Airway with Bronchi is ideal for training in percutaneous tracheostomy, needle and surgical cricothyroidotomy and bronchoscopy techniques.

The AirSim Difficult Airway with Bronchi manikin is compatible with a full range of supraglottic devices.

We recommend the following equipment sizes for optimal performance:

• 7.0-7.5 mm ID for nasal intubation
• 8.0-9.0 mm ID for oral intubation
• Size 3-5 for LMA laryngeal masks
• Similar respective sizes for other supraglottic devices
• Size 35F-37F for endo-bronchial tubes

This trainer is also an excellent airway demonstration model for airway management, FONA devices and bronchoscopy techniques.

Front of neck access trainer

Our AirSim Difficult Airway with Bronchi model facilitates training in FONA airway management, including needle and surgical cricothyroidotomy, percutaneous tracheostomy and bronchoscopy techniques.

Ideal for emergency and anaesthesia clinicians needing to maintain proficiency in emergency front of neck airway techniques.

DURABLE & REALISTIC INTUBATION MANIKIN

TruCorp intubation manikins are the most lifelike and hardworking airway trainers on the market today.

Our commitment to innovation provides a more realistic training experience for improved patient outcomes.

Every medical manikin is designed to withstand repeated use in a classroom setting for efficient training and higher value.

Replacement parts interchange quickly and easily.
