A phantom representing a five-year-old for practicing and performing imaging and dosimetry
Features:
1. Two types of interchangeable lung inserts are included - lung vascular insert and lung density insert.
2. Pencil-shaped ion chamber for CTDI can be set in the mediastinum, TLD or RPL dosimeters can be set in the thyroid block and the lung density insert.
3. Detachable internal structure allows insertion of variety of pathologies and targets.
Training skills / Applications:
CT
plain X-ray
dosimetry
radiographic interpretation

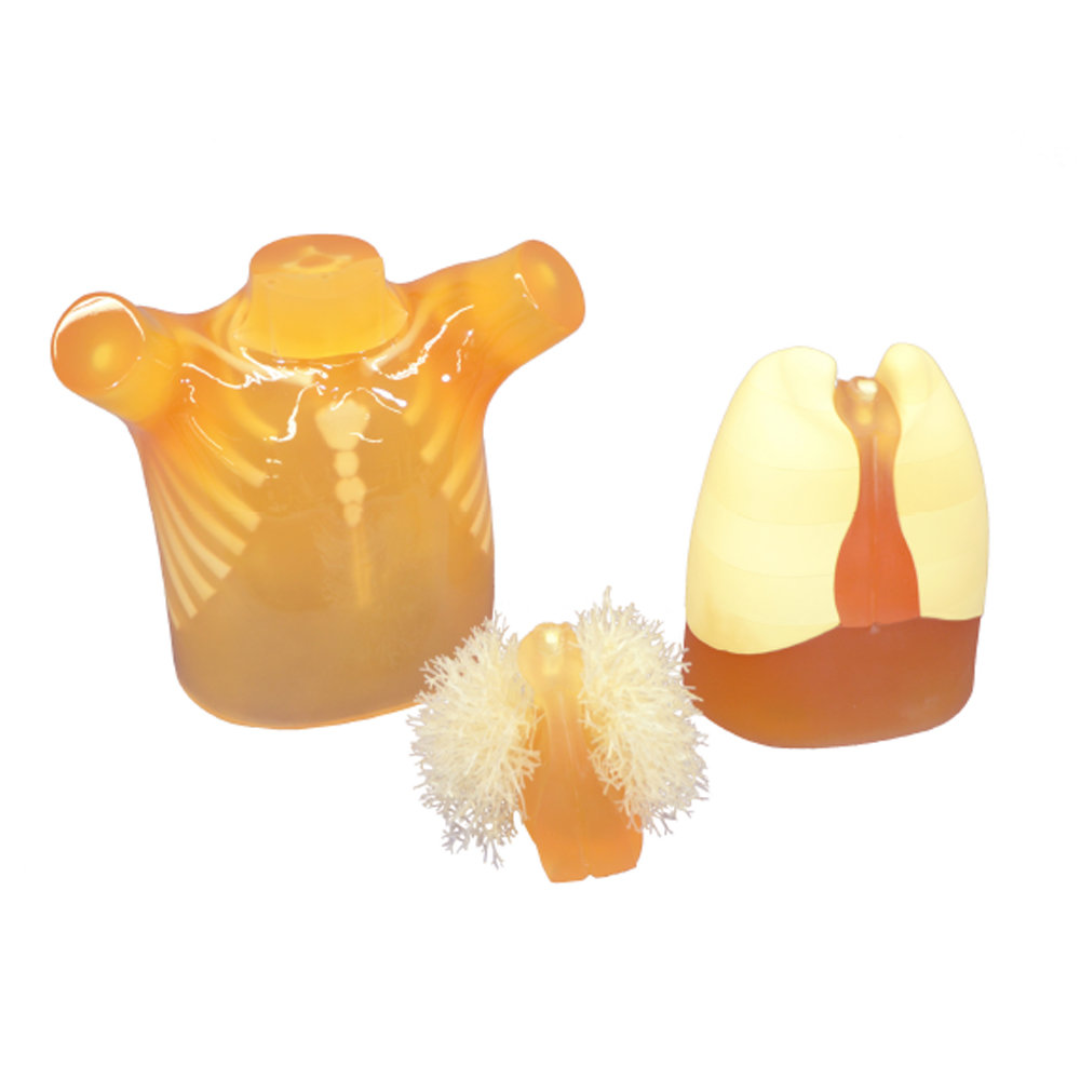

Set includes:
1 five-year-old chest torso
1 lung vasculature insert: mediastinum with pulmonary vessels
1 lung density insert: mediastinum, lung fields (L?ER)
1 set of sample images
1 storage case
manual
Size (approx.):
W32 x D17 x H38cm / W12.6 x D6.7 x W15in
Packing size (approx.):
W51 x D43 x H45cm / W20.1 x D16.9 x H17.7in
Weight (approx.):
6kg / 13.3lb
Packing weight (approx.):
14kg / 30lb
Materials:
Soft tissue: urethane based resin (density 1.06)
Synthetic bone: epoxy resin (density 1.31)
Product No.
41337-300 Storage case included
